TEFCOLD · SKU blca5x1

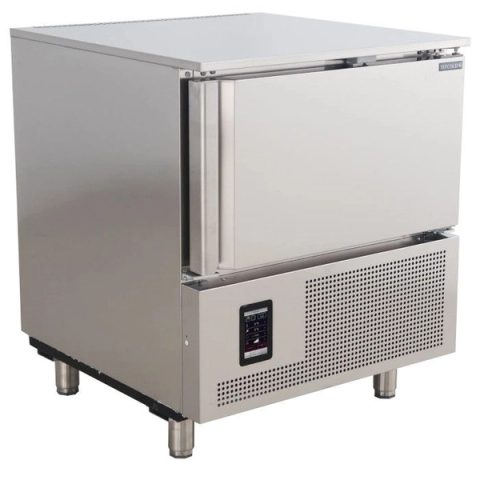

Blast chiller/freezer BLCA5X1

Five-pan GN 1/1 blast chiller/freezer with touchscreen control and a core probe, handling 18 kg per chilling cycle and 14 kg per freezing cycle.

Temperature
-18°C to +70°C ; +3°C to +70°C
Dimensions
804x826x1045

Price on request

Request a quote for the price and delivery time.Available to order · delivery 2–5 weeks

Request a quote
Call sales +372 5559 3678
About this product

Description

The BLCA5X1 takes hot food quickly down to a safe storage temperature, either chilling it from +70 °C to +3 °C or freezing it to −18 °C. Guides inside hold five GN 1/1 or Euronorm trays; pans are purchased separately. Operation is from a touchscreen with preset programmes and special cycles for fish, ice-cream hardening, drying and defrosting, and custom programmes can be stored.

The supplied core probe measures the food's internal temperature, and HACCP data can be exported over USB. The stainless-steel cabinet has a right-hinged, self-closing door that can be reversed and stands on four adjustable feet; defrost is by hot gas. Per cycle the unit chills 18 kg in 90 minutes and freezes 14 kg in 240 minutes.

Net volume is 91 litres of 169 litres gross, with a 660 × 640 × 400 mm chamber in an 804 × 826 × 1045 mm cabinet. Refrigerant R290, rated power 720 W, noise 60 dB(A), climate class N (+16 to +32 °C), net weight 116 kg.

Technical data

Specifications

Type
Blast chiller/freezer
Manufacturer
TEFCOLD
Model name
BLCA5X1
Gross volume; litres
169
Net volume; litres
91
External dimensions (W×D×H); mm
804x826x1045
Internal dimensions (W×D×H); mm
660x640x400
Operating capacity
Blast chilling from +70° to +3°C in 90 minutes; blast freezing from +70 to -18 °C in 240 minutes.
Temperature adjustment range
-18°C to +70°C ; +3°C to +70°C
Climate class
N (+16°C to +32°C)
Electrical connection
220-240 V / 50Hz
Electrical power; W
720
Gross and net weight; kg
149 / 116
Noise level; dBA
60
Exterior finish
AISI stainless steel SS304
Interior finish
AISI stainless steel SS304
Door / drawer
Right-hinged self-closing solid door; reversible
Handle
Integrated
Lock
No
Shelves
GN tray capacity: 5 x GN1/1
Feet / castors
Adjustable feet 4 pcs.
Refrigerant
R290
Cooling
Blast chilling
Defrosting
Automatic hot-gas defrost
Defrost water evaporation
Automatic
Temperature controller
Electronic, programmable
Thermometer
Digital
Other information
Chilling capacity 18kg Freezing capacity 14kg
Warranty
12 months
